Demo Setup
The demo is sales data for a beach shop. There are 4 tables in a lakehouse and semantic models build from the data to be the data source for the agents. This repo contains the 4 files to create those tables.
Populate Lakehouse Tables
::: info Instructions
- Create a lakehouse
- Create a new notebook and attach the Lakehouse
- Copy in the code below :::
Import code
# Fabric Notebook (PySpark + Pandas)
# Reads public CSV URLs via pandas, converts to Spark, writes Delta tables
import pandas as pd
basepath = "https://hatfullofdata.github.io/Sessions/Lets%20Build%20a%20Data%20Agent/Datafiles/"
files = [
{"url": f"{basepath}dim_date.csv","table": "dim_date"},
{"url": f"{basepath}dim_product.csv","table": "dim_product"},
{"url": f"{basepath}dim_weather.csv","table": "dim_weather"},
{"url": f"{basepath}fact_sales.csv","table": "fact_sales"},
]
for f in files:
url = f["url"]
table = f["table"]
print(f"Loading {url} -> {table}")
# 1) Download CSV with pandas
pdf = pd.read_csv(url)
# 2) Optional cleanup of column names
pdf.columns = (
pdf.columns.str.strip()
.str.replace(" ", "_", regex=False)
.str.replace(r"[^A-Za-z0-9_]", "", regex=True)
)
# 3) Convert to Spark DataFrame
sdf = spark.createDataFrame(pdf)
# 4) Write to default lakehouse as Delta table
(sdf.write
.format("delta")
.mode("overwrite")
.saveAsTable(table))
print(f"Done: {table} ({sdf.count()} rows)")
print("All tables loaded.")
Create Bella Semantic Model

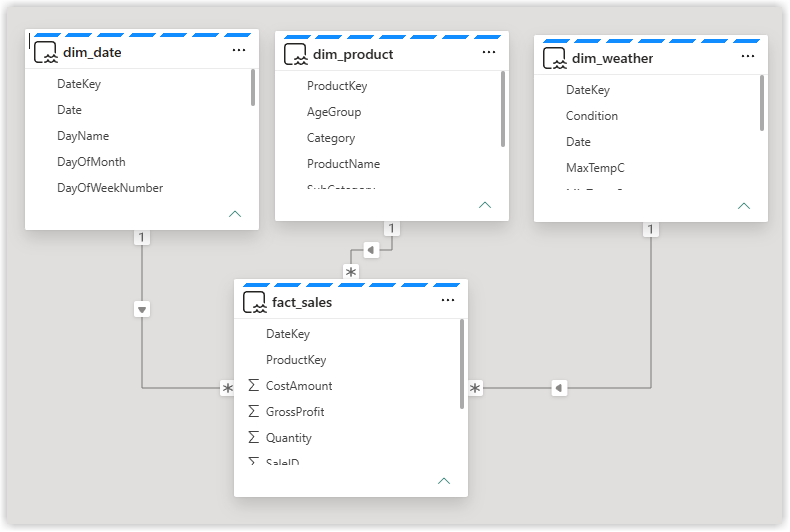

Create a semantic model for the Bella Agent including all 4 tables. Add in relationships using DateKey and ProductKey fields.
Add in a measure called Total Sales for the sum of the SalesAmount in fact_sales. Format this measure to be a currency.
Total Sales = SUM( fact_sales[SalesAmount] )
Create Casper Semantic Model
Repeat the steps for the Bella model.
For the IsOpen column in the dim_date add the following description
Indicates whether the business is open on this date. Values are Yes or No
For the Casper demo add in this agent instruction
When calculating averages do not include days when the store is not open
Daryl Scripts
For the fourth agent you can run tmdl scripts to enhance the semantic model.
dim_date
createOrReplace
ref table dim_date
/// Calendar date represented by this row.
column Date
dataType: dateTime
isKey
formatString: General Date
lineageTag: f09a4541-c79b-4cee-a24a-36b1c8aaed80
sourceLineageTag: Date
isDefaultLabel
summarizeBy: none
sourceColumn: Date
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Unique date key in YYYYMMDD format used to join this date dimension to fact tables.
column DateKey
dataType: int64
formatString: 0
lineageTag: 2f4c1d52-5005-4573-a80c-83c37ec60cd2
sourceLineageTag: DateKey
summarizeBy: none
sourceColumn: DateKey
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Full weekday name for the date, such as Monday.
column DayName
dataType: string
lineageTag: f8c8a6db-c2b4-4611-8f94-09dde68b269c
sourceLineageTag: DayName
summarizeBy: none
sourceColumn: DayName
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Day number within the month, from 1 to 31.
column DayOfMonth
dataType: int64
formatString: 0
lineageTag: 9e254a5d-ef7f-4f80-8e1b-b0f66a21f6b9
sourceLineageTag: DayOfMonth
summarizeBy: none
sourceColumn: DayOfMonth
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Day of week number for the date, where Monday = 1 and Sunday = 7, used for weekday sorting and filtering.
column DayOfWeekNumber
dataType: int64
formatString: 0
lineageTag: dd24b438-c9ce-4092-b30d-486daaeafefa
sourceLineageTag: DayOfWeekNumber
summarizeBy: none
sourceColumn: DayOfWeekNumber
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Indicates whether the date is a bank holiday. Values are Yes or No.
column IsBankHoliday
dataType: string
lineageTag: 83c8d10a-0dff-4169-9339-7f7f78244035
sourceLineageTag: IsBankHoliday
summarizeBy: none
sourceColumn: IsBankHoliday
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Indicates whether the date is a Monday bank holiday, when most people are off work and schools are usually closed. Values are Yes or No.
column IsBankHolidayMonday
dataType: string
lineageTag: 52739fe8-c557-4514-a5a5-4f7f22864a7b
sourceLineageTag: IsBankHolidayMonday
summarizeBy: none
sourceColumn: IsBankHolidayMonday
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Indicates whether the business is open for trading on this date. Values are Yes or No.
column IsOpen
dataType: string
lineageTag: f85ea92c-1b70-4fc1-99a8-fe4d4b1a940e
sourceLineageTag: IsOpen
summarizeBy: none
sourceColumn: IsOpen
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Indicates whether the date falls in a school holiday period, when children are not in school and visitor patterns may differ. Values are Yes or No.
column IsSchoolHoliday
dataType: string
lineageTag: 9fc29a23-cbcd-417a-aca8-bc65fecc8dbd
sourceLineageTag: IsSchoolHoliday
summarizeBy: none
sourceColumn: IsSchoolHoliday
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Indicates whether the date falls on a weekend. Values are Yes or No.
column IsWeekend
dataType: string
lineageTag: 68663d6f-e8cc-4cc6-9ded-25ed03880686
sourceLineageTag: IsWeekend
summarizeBy: none
sourceColumn: IsWeekend
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Full calendar month name, such as January.
column MonthName
dataType: string
lineageTag: bf5d05a6-3d22-465c-9397-8797429b6880
sourceLineageTag: MonthName
summarizeBy: none
sourceColumn: MonthName
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Calendar month number of the date, from 1 for January to 12 for December.
column MonthNumber
dataType: int64
formatString: 0
lineageTag: 829c734b-14d8-4c4b-a442-cf09c90f7d0a
sourceLineageTag: MonthNumber
summarizeBy: none
sourceColumn: MonthNumber
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Abbreviated calendar month name, such as Jan.
column MonthShort
dataType: string
lineageTag: 2346dfba-6bff-4caa-8a69-a5714b9ed170
sourceLineageTag: MonthShort
summarizeBy: none
sourceColumn: MonthShort
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Calendar quarter number of the date, from 1 to 4.
column Quarter
dataType: int64
formatString: 0
lineageTag: f566acb5-4eb8-45aa-b2bb-645620028930
sourceLineageTag: Quarter
summarizeBy: none
sourceColumn: Quarter
changedProperty = Description
annotation SummarizationSetBy = Automatic
column RowNumber-2662979B-1795-4F74-8F37-6A1BA8059B61
type: rowNumber
dataType: int64
isHidden
isUnique
isNullable: false
/// Season associated with the date, such as Spring, Summer, Autumn, or Winter.
column Season
dataType: string
lineageTag: ccb0f64d-5c27-4d2c-b822-ad5efb9ae754
sourceLineageTag: Season
summarizeBy: none
sourceColumn: Season
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Calendar year of the date, such as 2024.
column Year
dataType: int64
formatString: 0
lineageTag: 6b2577b5-dc08-472e-abc8-007f2f1a3530
sourceLineageTag: Year
summarizeBy: none
sourceColumn: Year
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Combined year and quarter label for reporting, such as 2024-Q1.
column YearQuarter
dataType: string
lineageTag: f924af56-62b5-479c-a7fc-c159c8d591f1
sourceLineageTag: YearQuarter
summarizeBy: none
sourceColumn: YearQuarter
changedProperty = Description
annotation SummarizationSetBy = Automatic
dim_product
createOrReplace
ref table dim_product
/// Intended customer age group for the product. Values include All, Adult, or Child.
column AgeGroup
dataType: string
lineageTag: c78f0f87-04f8-4770-9fdc-35c64973df7f
sourceLineageTag: AgeGroup
summarizeBy: none
sourceColumn: AgeGroup
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// High-level product category used for grouping products, such as Beach, Wetsuit, or Surfboard.
column Category
dataType: string
lineageTag: f75383aa-b1c9-4d52-ab88-0f1560447e6d
sourceLineageTag: Category
summarizeBy: none
sourceColumn: Category
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Unique product key used to join this product dimension to related fact tables.
column ProductKey
dataType: int64
formatString: 0
lineageTag: eb6eb5d4-4fa7-42e6-859c-350a5455dd72
sourceLineageTag: ProductKey
summarizeBy: none
sourceColumn: ProductKey
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Product name shown in reporting and analysis, such as Bucket & Spade Set or Shortboard.
column ProductName
dataType: string
lineageTag: 65a7ce6e-415e-46e8-8f3e-17744012f07e
sourceLineageTag: ProductName
isDefaultLabel
summarizeBy: none
sourceColumn: ProductName
changedProperty = Description
annotation SummarizationSetBy = Automatic
column RowNumber-2662979B-1795-4F74-8F37-6A1BA8059B61
type: rowNumber
dataType: int64
isHidden
isUnique
isKey
isNullable: false
/// More specific product grouping within the category, such as Beach Toys, Performance, or Accessories.
column SubCategory
dataType: string
lineageTag: f736b5a0-12ea-480a-b90b-10f37396b19c
sourceLineageTag: SubCategory
summarizeBy: none
sourceColumn: SubCategory
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Cost per unit of the product.
column UnitCost
dataType: double
lineageTag: 65420a15-e7d2-4267-8d6c-c5d6de57f2c4
sourceLineageTag: UnitCost
summarizeBy: none
sourceColumn: UnitCost
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Selling price per unit of the product.
column UnitPrice
dataType: double
lineageTag: 915defb1-c075-41c8-8781-1299aa91daf0
sourceLineageTag: UnitPrice
summarizeBy: none
sourceColumn: UnitPrice
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
dim_weather
createOrReplace
ref table dim_weather
/// Summary weather condition for the date, such as Partly Cloudy, Cloudy, or Rain.
column Condition
dataType: string
lineageTag: 0849e068-af3e-49ce-96f7-2841929a82cf
sourceLineageTag: Condition
summarizeBy: none
sourceColumn: Condition
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Calendar date represented by this row.
column Date
dataType: dateTime
formatString: General Date
lineageTag: e0bd7246-af65-429e-ac2a-9a23b38047f4
sourceLineageTag: Date
summarizeBy: none
sourceColumn: Date
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Unique date key in YYYYMMDD format used to join this weather dimension to related tables.
column DateKey
dataType: int64
formatString: 0
lineageTag: 40f70586-1902-48f4-80f3-013df3cb287d
sourceLineageTag: DateKey
summarizeBy: none
sourceColumn: DateKey
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Maximum temperature recorded for the date in degrees Celsius.
column MaxTempC
dataType: double
lineageTag: 16c6a25d-f25d-4107-aeae-cad50d6fbbcb
sourceLineageTag: MaxTempC
summarizeBy: none
sourceColumn: MaxTempC
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Minimum temperature recorded for the date in degrees Celsius.
column MinTempC
dataType: double
lineageTag: 335e354d-9d13-4c01-8971-bddd3835565e
sourceLineageTag: MinTempC
summarizeBy: none
sourceColumn: MinTempC
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Total rainfall for the date in millimetres.
column RainfallMM
dataType: double
lineageTag: 93a5cebe-d14c-4223-8f24-c25cea91efca
sourceLineageTag: RainfallMM
summarizeBy: none
sourceColumn: RainfallMM
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
column RowNumber-2662979B-1795-4F74-8F37-6A1BA8059B61
type: rowNumber
dataType: int64
isHidden
isUnique
isKey
isNullable: false
/// Total sunshine duration for the date in hours.
column SunshineHours
dataType: double
lineageTag: de3dd48b-97d9-4668-a519-06a2d0a91ca7
sourceLineageTag: SunshineHours
summarizeBy: none
sourceColumn: SunshineHours
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Composite weather score from 0 to 1 calculated from the other weather measures in this table, where higher values indicate better weather conditions.
column WeatherScore
dataType: double
lineageTag: ac8721a7-b2e6-43a1-bda2-223bfc4a7ae7
sourceLineageTag: WeatherScore
summarizeBy: none
sourceColumn: WeatherScore
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Average or recorded wind speed for the date in miles per hour.
column WindSpeedMPH
dataType: double
lineageTag: 471ceed8-e8ba-44a4-9b9c-9daf49dc5be6
sourceLineageTag: WindSpeedMPH
summarizeBy: none
sourceColumn: WindSpeedMPH
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
fact_sales columns and measures
createOrReplace
ref table fact_sales
/// Total cost value for this row, typically calculated as Quantity multiplied by UnitCost.
column CostAmount
dataType: double
lineageTag: 350292c4-20c1-4f4a-acba-a8ecadbae59c
sourceLineageTag: CostAmount
summarizeBy: sum
sourceColumn: CostAmount
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Date key in YYYYMMDD format used to join each sales row to the date dimension.
column DateKey
dataType: int64
formatString: 0
lineageTag: 47efbbba-4e00-4986-ade7-27d5d6e7ab43
sourceLineageTag: DateKey
summarizeBy: none
sourceColumn: DateKey
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Gross profit for this row, calculated as SalesAmount minus CostAmount.
column GrossProfit
dataType: double
lineageTag: 7728aab3-f80e-4598-a773-6e2cab7af29c
sourceLineageTag: GrossProfit
summarizeBy: sum
sourceColumn: GrossProfit
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Product key used to join each sales row to the product dimension.
column ProductKey
dataType: int64
formatString: 0
lineageTag: 30d3eb6f-47d1-4950-b4dd-8d5842c1b90b
sourceLineageTag: ProductKey
summarizeBy: none
sourceColumn: ProductKey
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Number of units sold in this sales row.
column Quantity
dataType: int64
formatString: 0
lineageTag: f2d2c26b-1c1b-463d-acc6-c0c9f0961e18
sourceLineageTag: Quantity
summarizeBy: sum
sourceColumn: Quantity
changedProperty = Description
annotation SummarizationSetBy = Automatic
column RowNumber-2662979B-1795-4F74-8F37-6A1BA8059B61
type: rowNumber
dataType: int64
isHidden
isUnique
isKey
isNullable: false
/// Sales transaction identifier. Multiple rows can share the same SaleID when a single sale contains multiple products.
column SaleID
dataType: int64
formatString: 0
lineageTag: b0e67d87-6884-4afc-8e6f-7088292fe46f
sourceLineageTag: SaleID
summarizeBy: count
sourceColumn: SaleID
changedProperty = Description
annotation SummarizationSetBy = Automatic
/// Total sales value for this row, typically calculated as Quantity multiplied by UnitPrice.
column SalesAmount
dataType: double
lineageTag: 059061f5-e012-4e03-a4a0-2af150ff571a
sourceLineageTag: SalesAmount
summarizeBy: sum
sourceColumn: SalesAmount
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Cost per unit for the product in this sales row.
column UnitCost
dataType: double
lineageTag: 128866f3-51de-4938-b9d5-ff2fd6d4b021
sourceLineageTag: UnitCost
summarizeBy: sum
sourceColumn: UnitCost
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Selling price per unit for the product in this sales row.
column UnitPrice
dataType: double
lineageTag: ca79dca3-5f68-4f58-ba62-cc202173a458
sourceLineageTag: UnitPrice
summarizeBy: sum
sourceColumn: UnitPrice
changedProperty = Description
annotation SummarizationSetBy = Automatic
annotation PBI_FormatHint = {"isGeneralNumber":true}
/// Gross margin percentage calculated as total gross profit divided by total sales.
measure 'Gross Margin %' =
DIVIDE(
[Total Gross Profit],
[Total Sales]
)
formatString: 0.00%;-0.00%;0.00%
lineageTag: f2b134ed-6ca9-46fc-8c4b-c08045949cf1
changedProperty = FormatString
changedProperty = Description
changedProperty = Name
/// Total cost calculated as the sum of CostAmount.
measure 'Total Cost' = SUM( fact_sales[CostAmount] )
formatString: "£"#,0.00;-"£"#,0.00;"£"#,0.00
lineageTag: 2f0f0ec2-8f8b-4d03-9d3f-7f7b2f7d1001
changedProperty = Name
changedProperty = FormatString
changedProperty = Description
annotation PBI_FormatHint = {"currencyCulture":"en-GB"}
/// Total gross profit calculated as the sum of GrossProfit.
measure 'Total Gross Profit' = SUM( fact_sales[GrossProfit] )
formatString: "£"#,0.00;-"£"#,0.00;"£"#,0.00
lineageTag: 5f6c7d9a-2c11-4d5b-9f70-3b66a2b81002
changedProperty = Name
changedProperty = FormatString
changedProperty = Description
annotation PBI_FormatHint = {"currencyCulture":"en-GB"}
/// Total quantity of units sold calculated as the sum of Quantity.
measure 'Total Qty' = SUM( fact_sales[Quantity] )
formatString: #,0
lineageTag: 8370526d-0527-4f1e-a215-7ea6b3512f6a
changedProperty = Name
changedProperty = FormatString
changedProperty = Description
/// Total sales revenue calculated as the sum of SalesAmount. Use this as the main measure for sales value reporting.
measure 'Total Sales' = SUM( fact_sales[SalesAmount] )
formatString: "£"#,0.00;-"£"#,0.00;"£"#,0.00
lineageTag: 83912349-c6e3-4839-9483-ccb4a68783fa
changedProperty = Name
changedProperty = FormatString
changedProperty = Description
annotation PBI_FormatHint = {"currencyCulture":"en-GB"}
